Demineralization through ion exchange is a common process used in water treatment to remove dissolved minerals, salts, and other impurities from water. The process involves the use of ion exchange resins, which are materials that can selectively remove ions from a solution by exchanging them with other ions of similar charge.

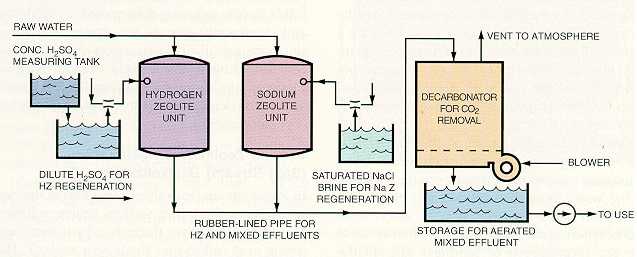

There are different ion exchange process schemes that can be used for demineralization, depending on the type and quality of the feed water, the required quality of the treated water, and the available resources. Some of the commonly used schemes are:
Single Bed Demineralization:
In this process, a single ion exchange resin bed is used to remove both cations and anions from the feed water. The resin bed is typically regenerated using acid and caustic solutions.
Mixed Bed Demineralization:
In this process, a mixture of cation and anion exchange resins is used in a single bed. The resins are intimately mixed and packed together to provide a highly effective demineralization process. The mixed bed is typically regenerated using an acid and caustic solution.
Two-Bed Demineralization:
In this process, two separate resin beds are used, one for cations and the other for anions. The feed water is first passed through the cation exchange bed to remove cations, and then through the anion exchange bed to remove anions. The two resin beds are typically regenerated separately.
Counter-Current Demineralization:
In this process, the feed water and regenerant flows are arranged in a counter-current configuration, allowing for more efficient use of the ion exchange resins. The cation and anion exchange resins are arranged in separate columns, and the feed water flows in the opposite direction to the regenerant.
Co-Current Demineralization:
In this process, the feed water and regenerant flows are arranged in a co-current configuration, where the feed water and regenerant flow in the same direction through the ion exchange resin bed. This process is typically used for low flow rates and small ion exchange columns.
These are some of the commonly used demineralization ion exchange process schemes. The selection of the appropriate scheme depends on the specific requirements of the water treatment application, as well as the available resources and equipment.
